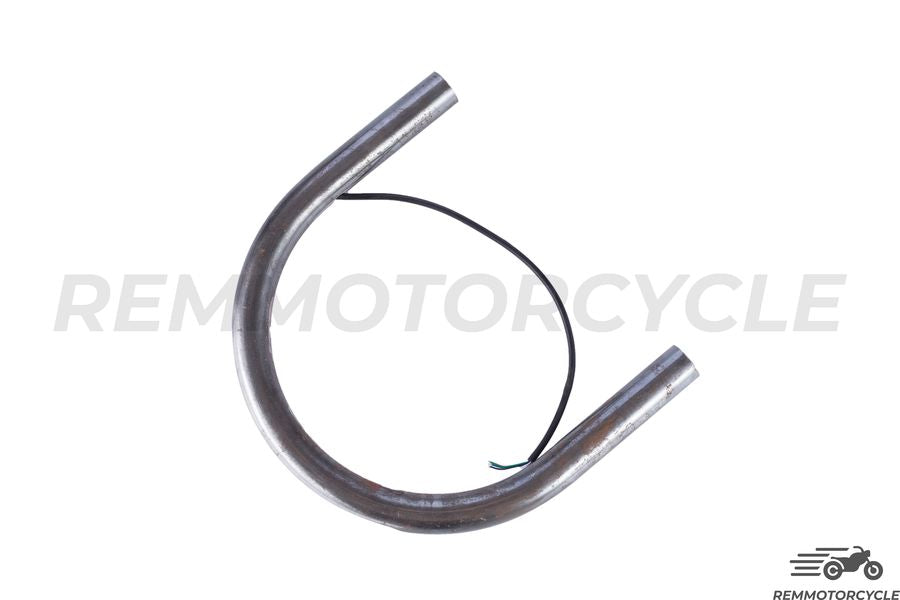

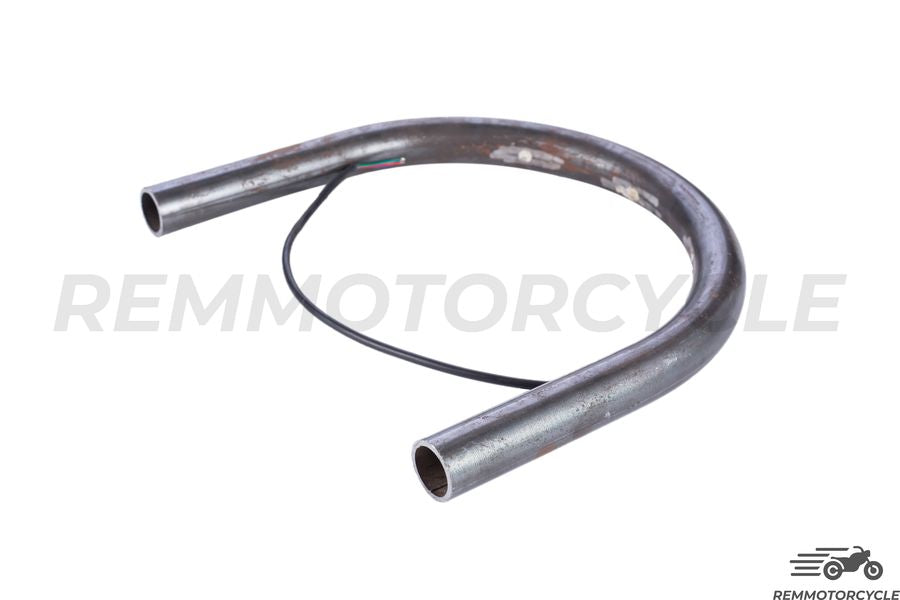

U frame back motorcycle LED strip with Integrated flat and Rebuilt Dia. 0.86 in (22 mm)

Discover our famous motorcycle back U frame with its integrated LED strip

If you want to install a new seat or change shape your bike, this is perfect .

U frame is a part for attachment to the rear of the bike to close part.

This enables more aesthetic the back of the bike.

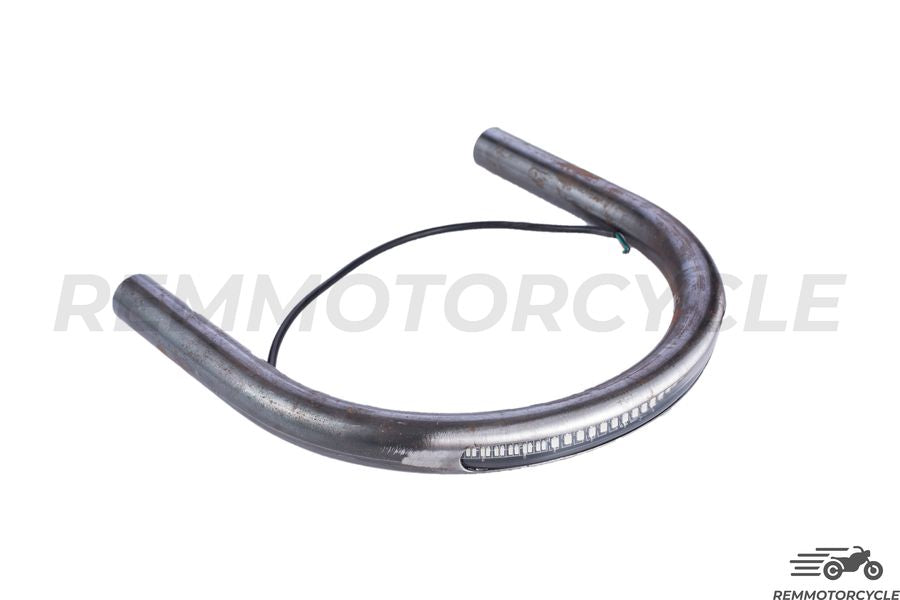

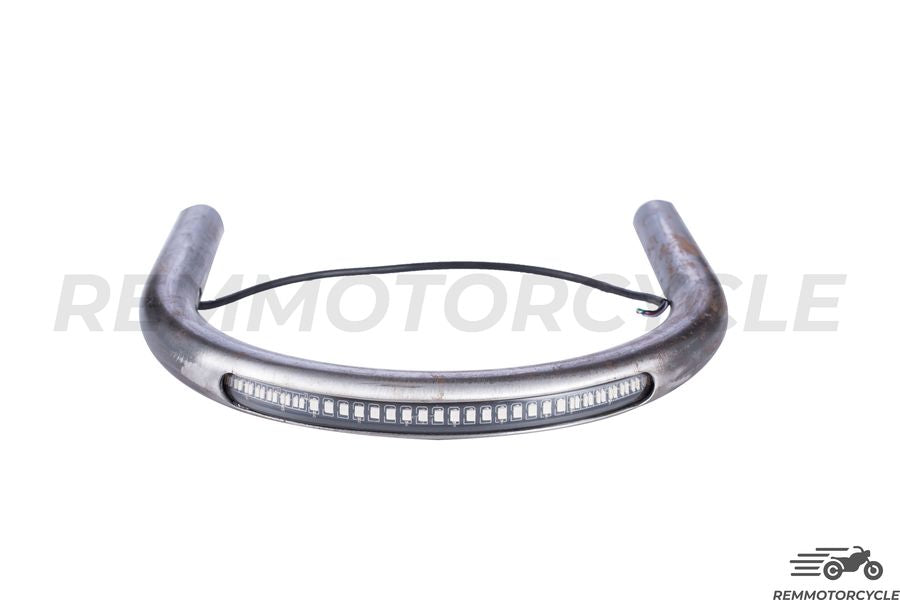

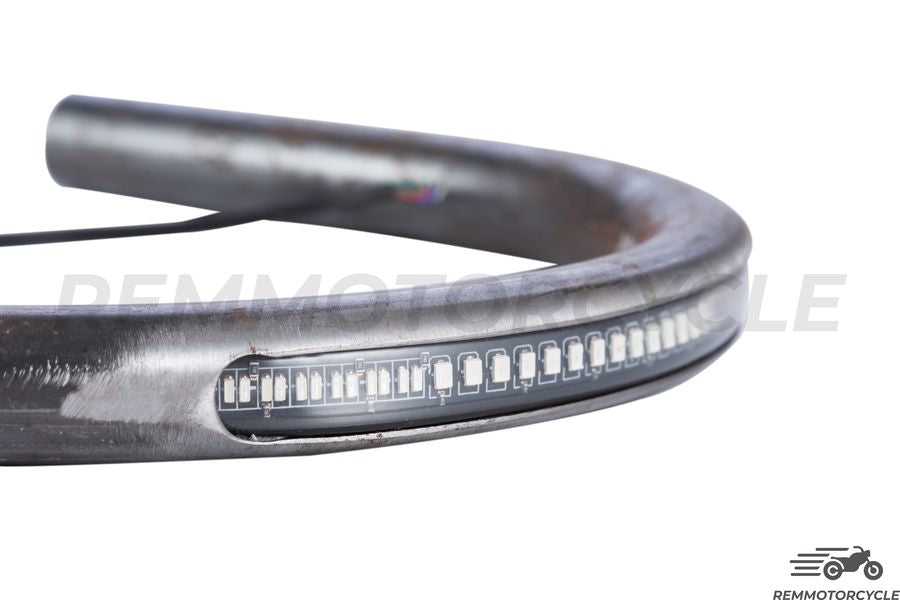

Our model has the distinction of housing a LED strip on the back part.

So LED strip can replace the turn signal, tail light and fire STOP original.

integration to create a style minimalist by removing all the ugly .

This style is very popular and understandably saw the stunning look that gives the bike.

Demonstration Video:

This model is available in different widths from 6.88 in to 8.85 in (175 mm to 225 mm).

So in 2 versions: flat or raised.

The choice depends on the size of your frame. (More details below).

As for the version, it depends on your future seat and the style you want for your motorcycle.

Here are some explanations of the U frame.

A short U frame:

The U frame attaches to the rear of the frame and used to close it. Make aesthetic.

The dimensions expressed correspond to the following dimensions:

Please note: The width is expressed as the external width, distance between the ends of each side.

Model available in diameter 1" in (25 mm)

The correspondence of son is:

• Red: brake lights
• White: sidelights
• Yellow: left indicator
• Green: Flashing right
• Black: negative

Exemple of installation:

Info: It may be advisable to install resistors if your taillights work with bulbs.

The same for flashing, if the 4 LED indicators are flashing, we recommend installing a Central flashing LED if resistance if the turn signals are on the front bulbs.

Note: Available in 7-9 days.
