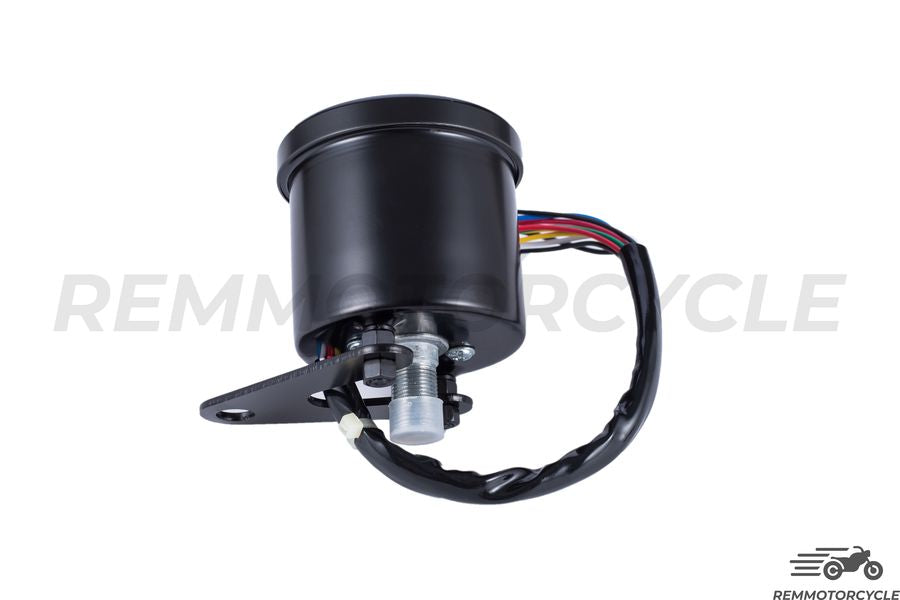

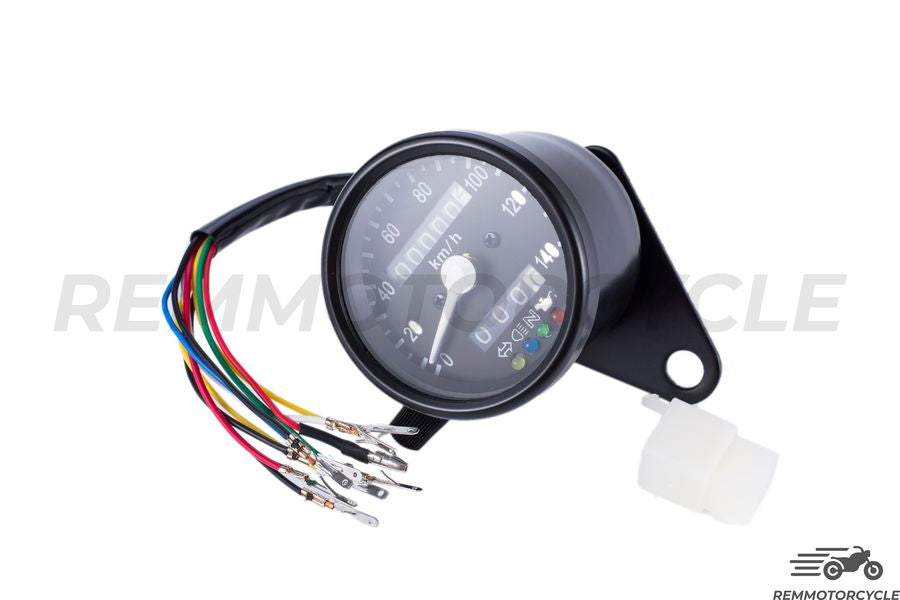

Speedometer Cafe Racer Motorcycle km/h Black Background Black 4 indicators

X00119O8LJ

  • Easy to install
  • Indicator light: light, neutral, turn signals, oil
  • Backlight
  • Mechanical speedometer

PAYMENT IN 4 TIMES

TESTE ET APPROUVÉ

TESTED AND APPROVED

SATISFACTION 100%

SATISFACTION GUARANTEED


DESCRIPTION:

The coffee speedometer motorcycle racer par excellence.


Here meter retrosingleand effective. For those who prefer the LEDs below the needle. It offers basic lights. Namely: turn signals, high beam, neutral point and the alert level of oil. This meter coffee motorcycle racerhas a standard ratio of 1.4 that fits most bikes. No adjustment is required for installation.

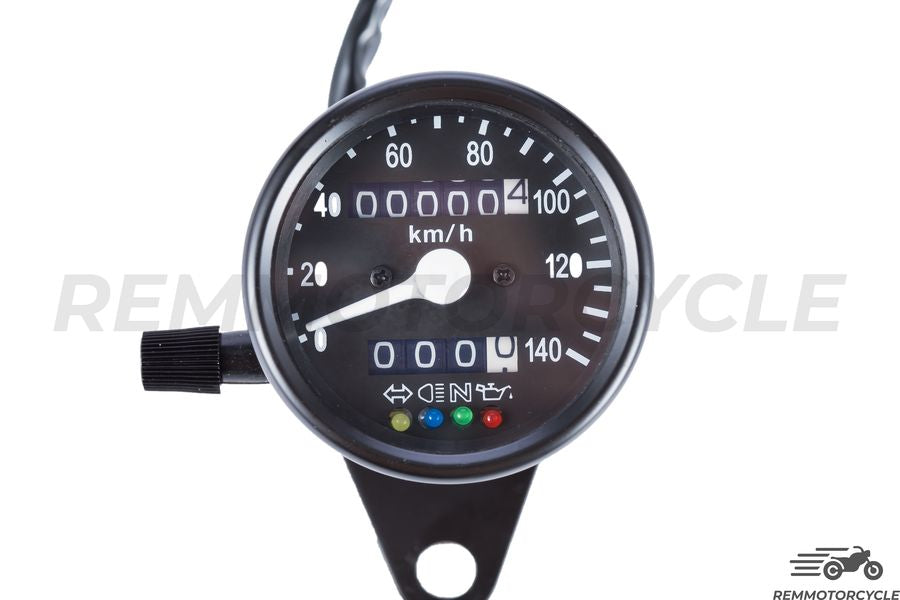

The speedospeedometer needle goes up to 140 km /h. Not enough for the quickest of us. To them we offer speedometers up to 200 km /h.

This meter is available with a white speedometer background or a black background.



Specifications:

  • Material: Stainless steel
  • Strapping diameter: 25.59 in (65 mm)
  • Body diameter: 2.36 in (60 mm)
  • Height: 1.96 in (50mm)
  • Speedometer unit: km /h
  • Odometer Unit: km
  • Form: circle
  • Removable Media

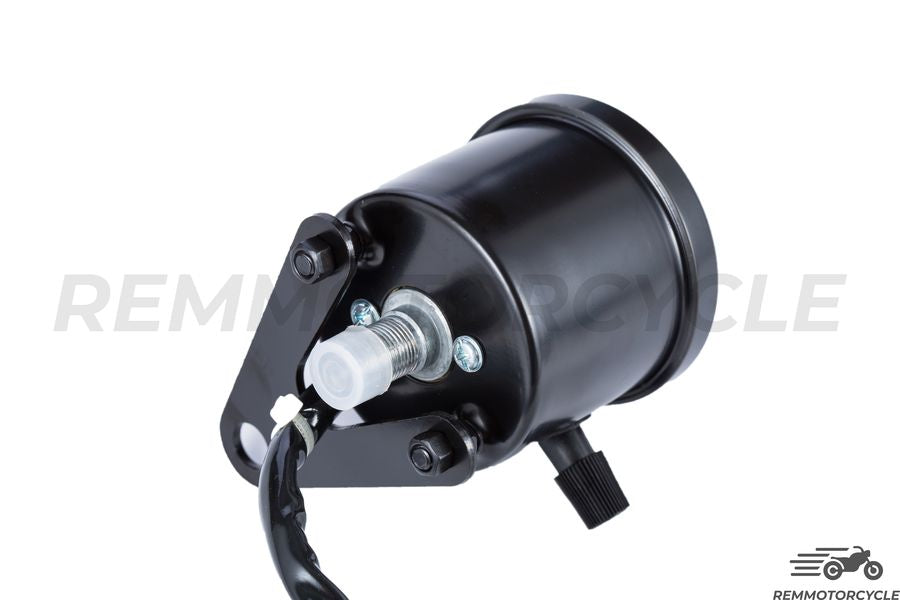

  • Taking classic speedometer M12 x 1mm
  • White backlight
  • Gear ratio 1: 1400 (60 km /h = 1400 rpm)
  • Ratio: K = 1.4

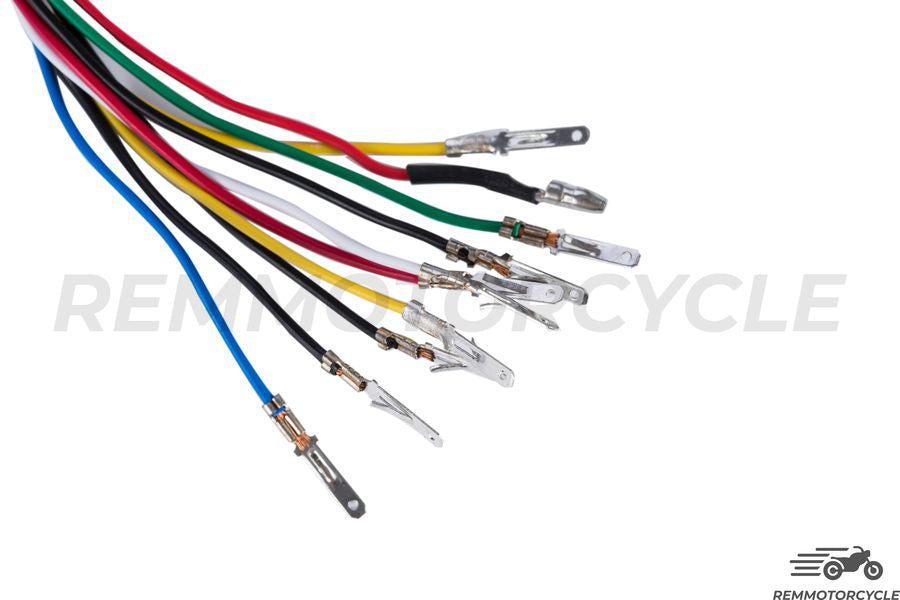

Wiring Scheme:

  • 3 x Black: Negative
  • White: Negative
  • Red: (Positive) light oil indicator
  • 2 x Yellow: (Positive) Flashing Flashing left and right
  • Blue (Positive) High beam
  • Green: (Positive) Neutral
  • Insert Red: (Positive) speedometer lights





HelpCalculate the ratio: K = 10 * X /U

U is the circumference of the wheel causing the meter. You can calculate the formula of the perimeter of a circle: 2 * π * radius of the wheel in cm

.

X = the number of turns that is the square driving the speedometer 10 laps. To count the number of turns, mark the cable on one side and spin the wheel 10 turns.

If K = 1, you need a speedometer K = 1.0 or an adjustable speedometer (Example: the digital speedometer).

If K = 1.4 you need a speedometer K = 1.4.


Note: Available within 7-9 days
