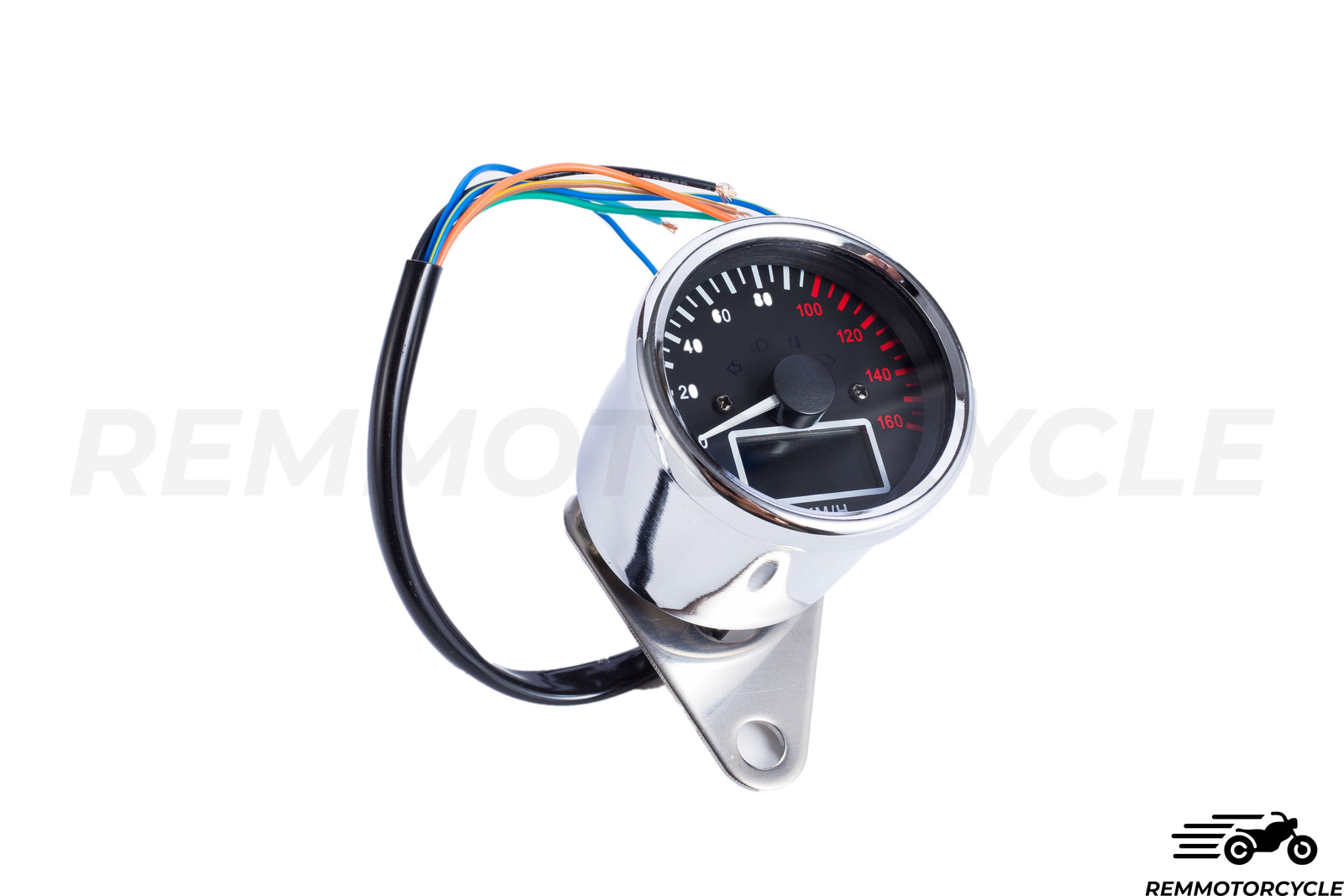

DIGITAL Speedometer Motorcycle MPH Classic Chrome or Black

Switch to a universal motorcycle speedometer while keeping your bike’s retro style.

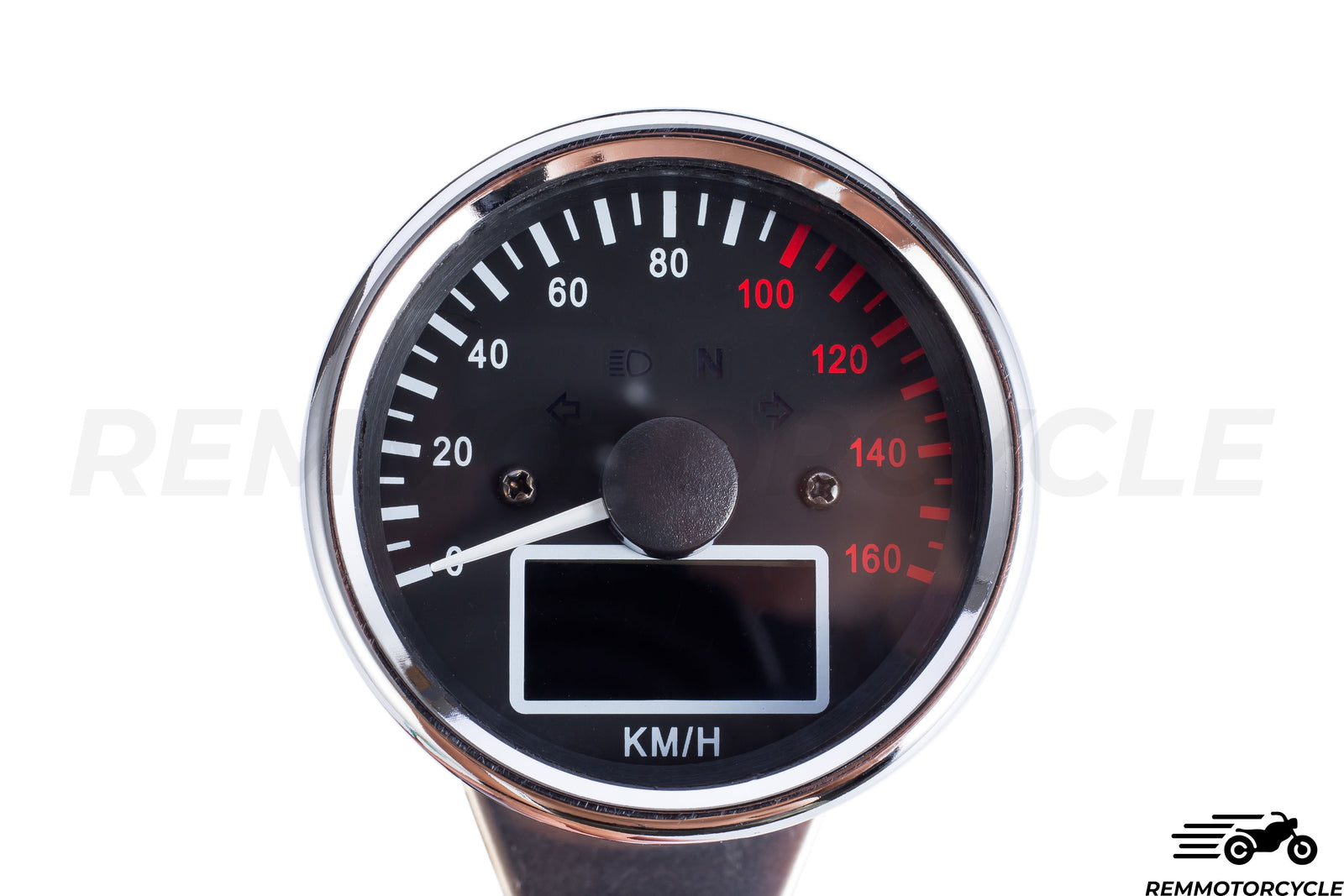

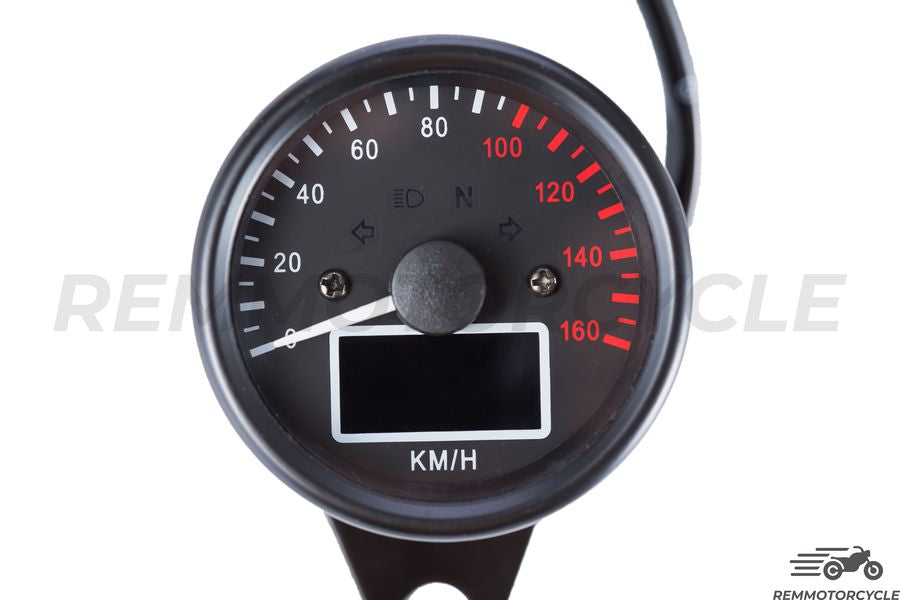

This universal motorcycle speedometer features a neo-retro style, combining the essential needle display for speed with a digital screen that shows the fuel gauge and mileage.

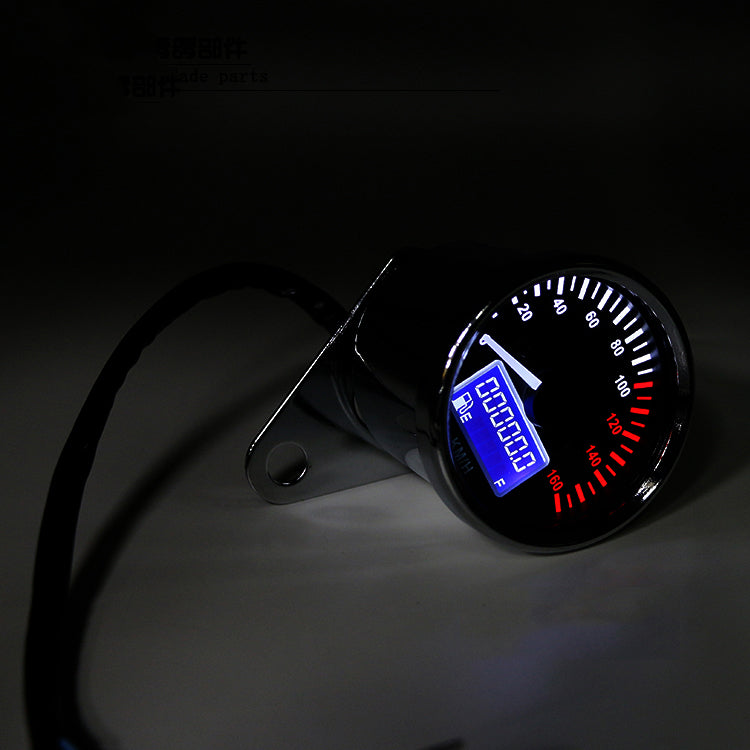

The screen is blue. It also has 4 useful indicator lights: turn signals, high beam, and neutral.

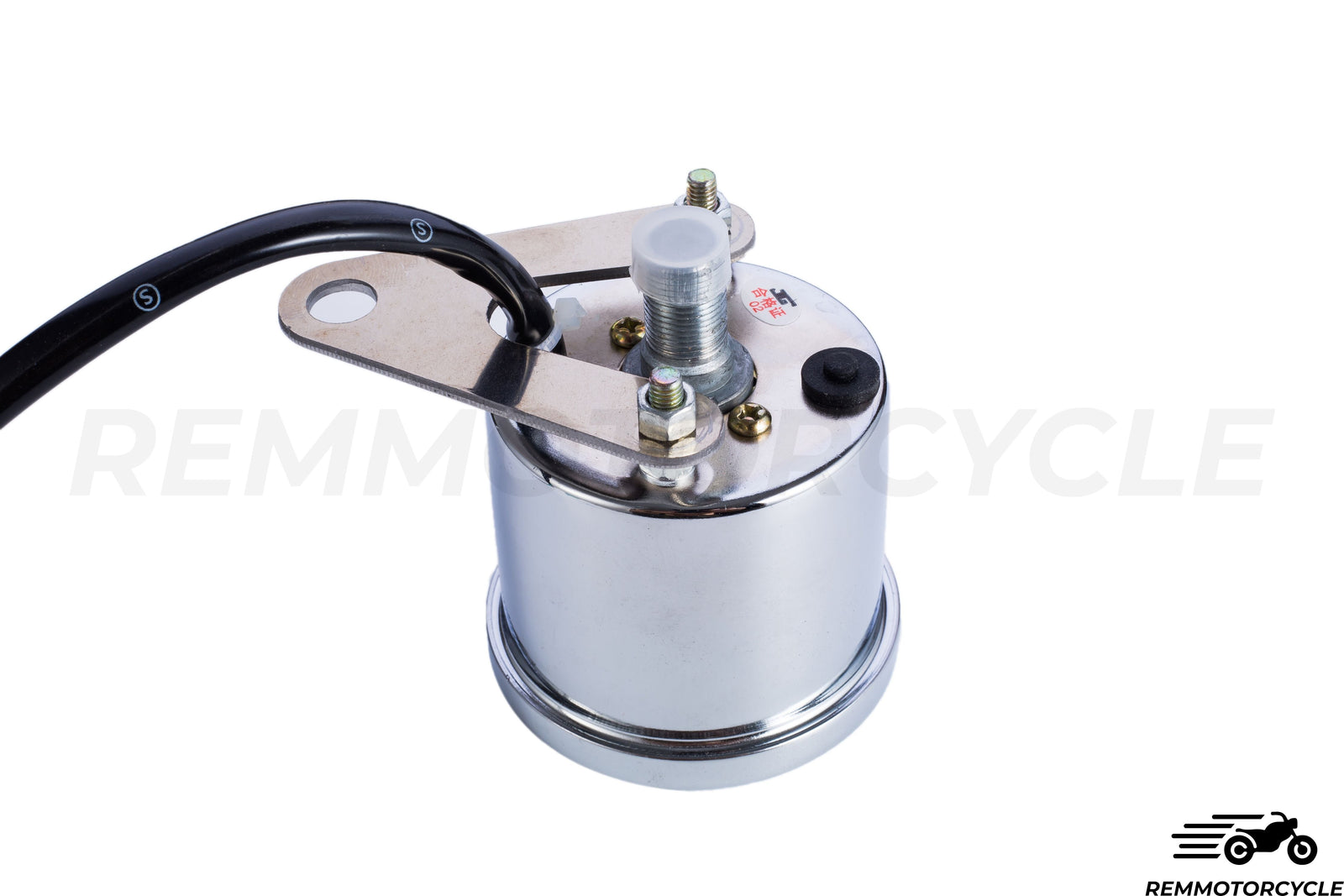

It is available in two finishes: chrome or black. (2 additional finishes available on request: bronze and brass.)

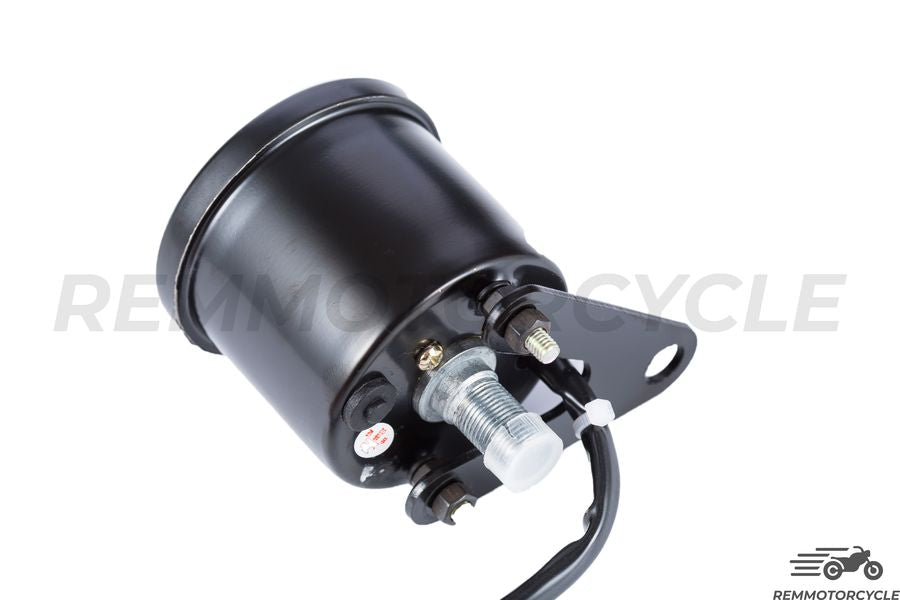

It has a button on the back to reset the trip meter and switch the displayed mileage between trip and total mileage.

This universal motorcycle speedometer fits all models. The cable ratio is the standard 1.4 ratio.

Specifications:

• Material: Stainless steel
• Bezel diameter: 65 mm
• Body diameter: 60 mm
• Height: 50 mm
• Speedometer unit: km/h
• Odometer unit: km
• Shape: circle

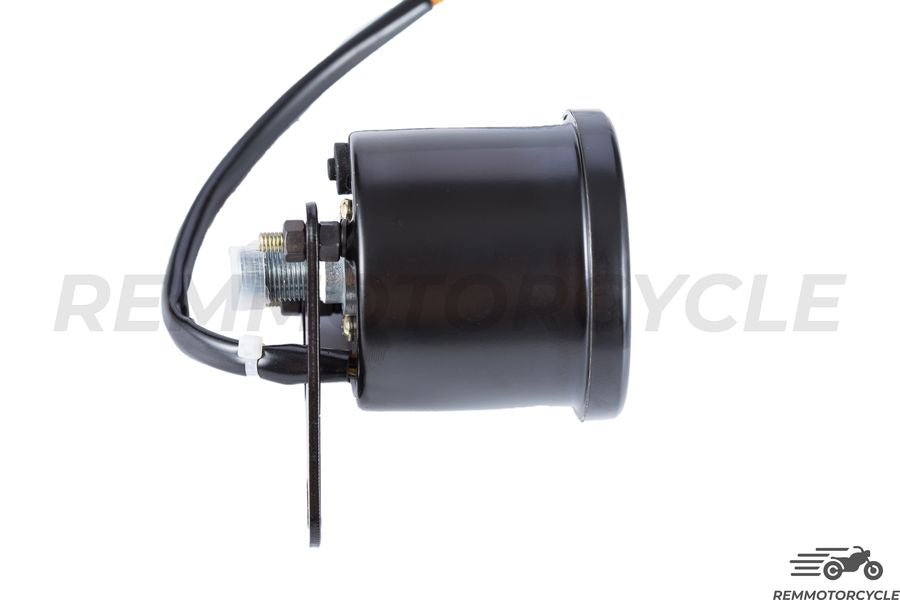

• Detachable bracket

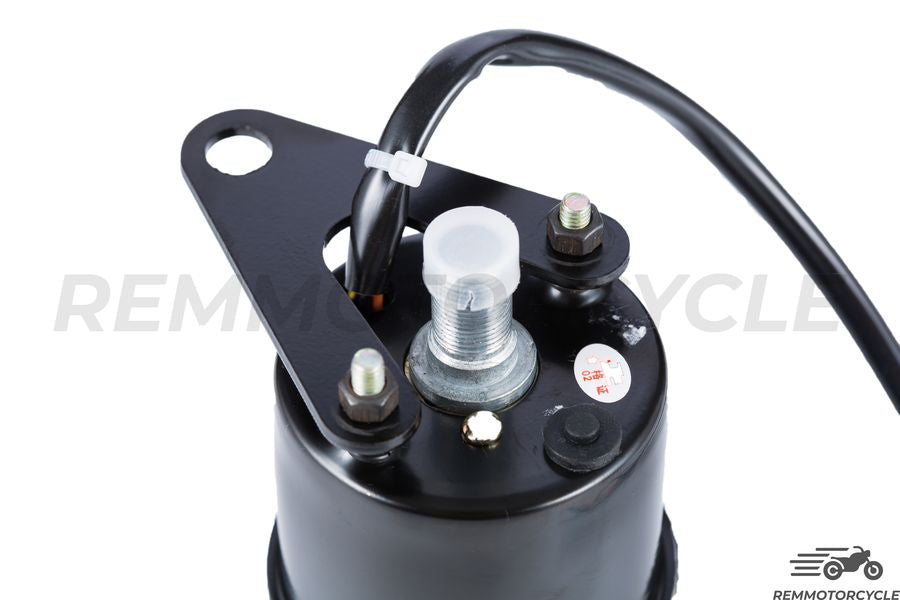

• Classic speedometer socket M12 X 1mm
• White backlight Ratio: 1.4

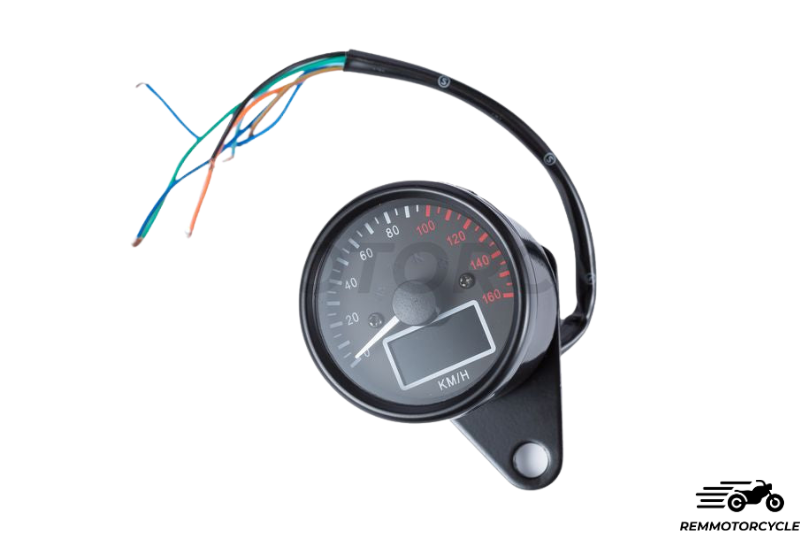

Wiring diagram:

• Green wire - Ground / negative
• Light blue wire - Right turn signal
• Orange wire - Left turn signal
• Blue wire - High beam
• Blue and white wire - Fuel gauge
• Red and green wire - Neutral speed

Installation example:

Lighting:

Help: Calculate the ratio: K = 10 * X / U

U = circumference of the wheel driving the speedometer. You can calculate it with the circle perimeter formula: 2 * π * wheel radius in cm.

X = number of turns made by the square shaft driving the speedometer in 10 wheel turns. To measure this, mark the cable on one side and rotate the wheel 10 times.

If K = 1, you need a K=1.0 speedometer or an adjustable speedometer (example: digital speedometer).

If K = 1.4, you need a K=1.4 speedometer. Like this one.

This information can also be found online.
