Titanium Intake Kit for Triumph Bobber

A premium intake kit to elevate your Triumph Bobber

Crafted by Goldwing Craft, this open-intake kit replaces the stock airbox on your Triumph Bobber, freeing the parallel-twin’s breathing and visually lightening the frame triangle.

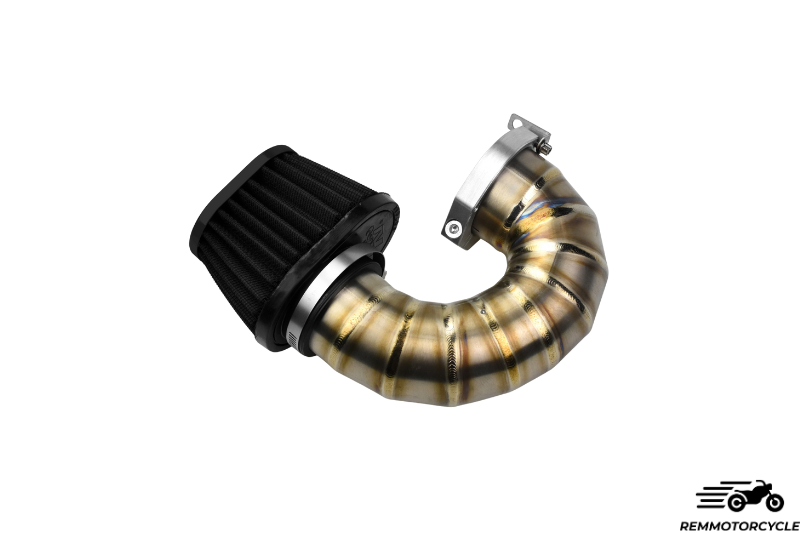

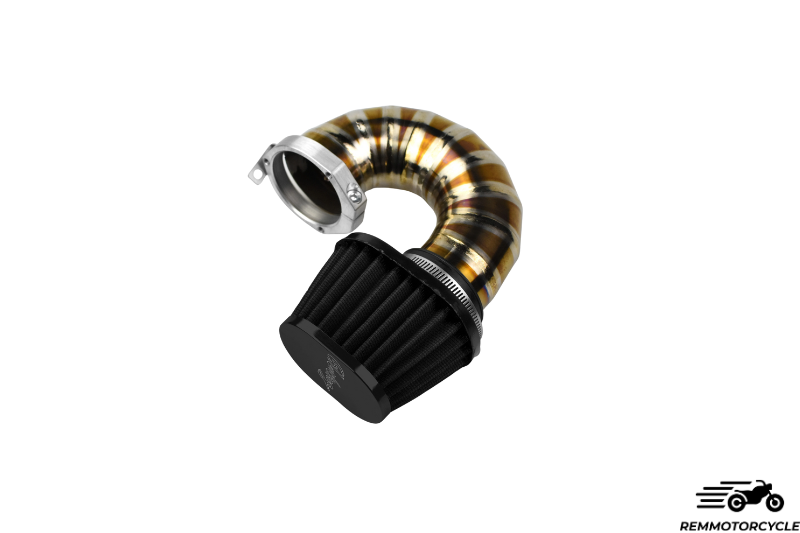

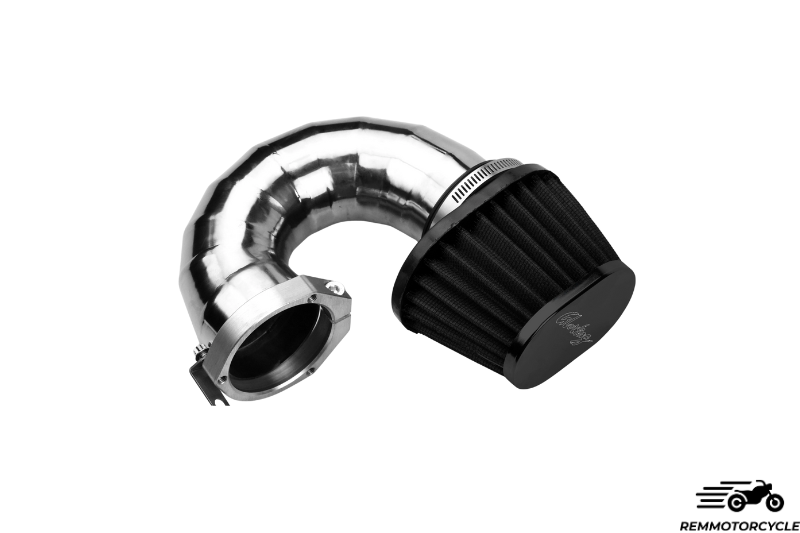

The 90° elbows are TIG-welded from grade-1 titanium and offered in three finishes:

• Golden (gold-colored),
• Raw (natural titanium),
• Polished (mirror effect).

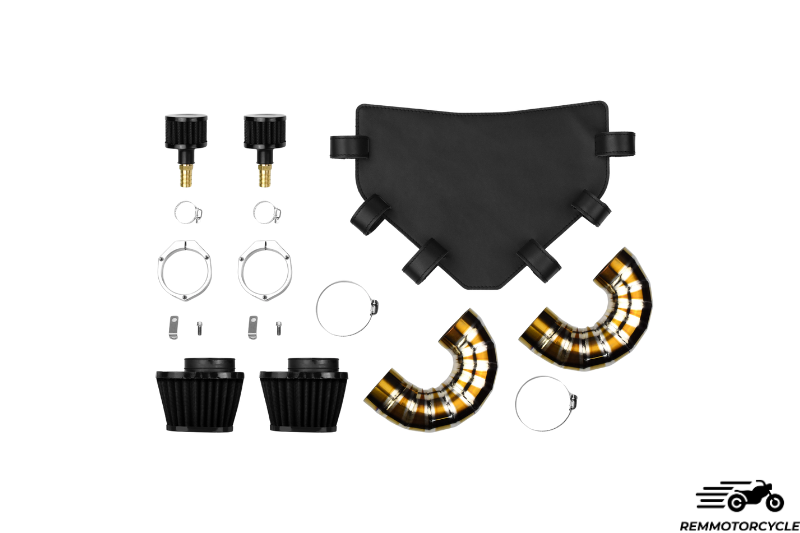

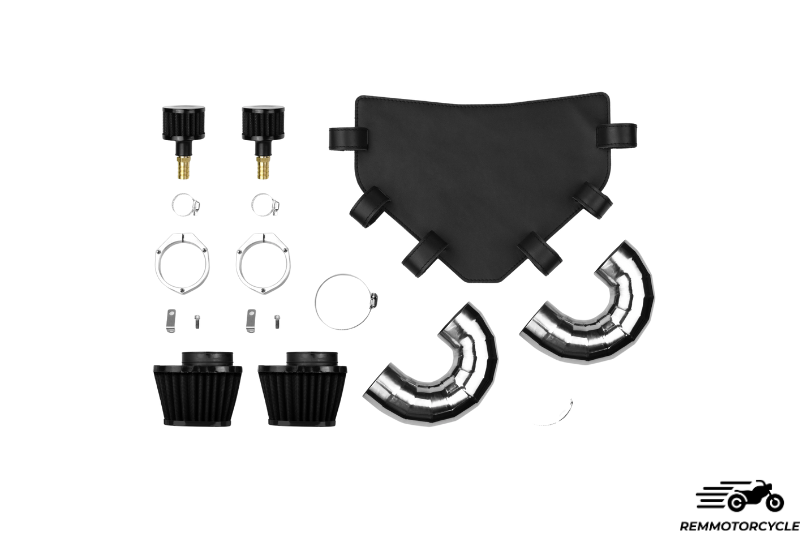

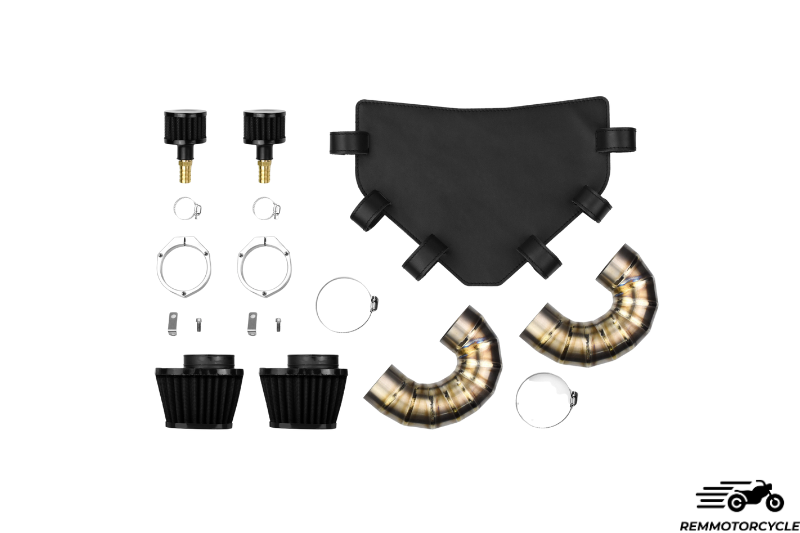

Kit contents

• 2 titanium intake elbows
• 2 high-density conical air filters + brass spigots
• 2 CNC-machined aluminum clamps + stainless hardware

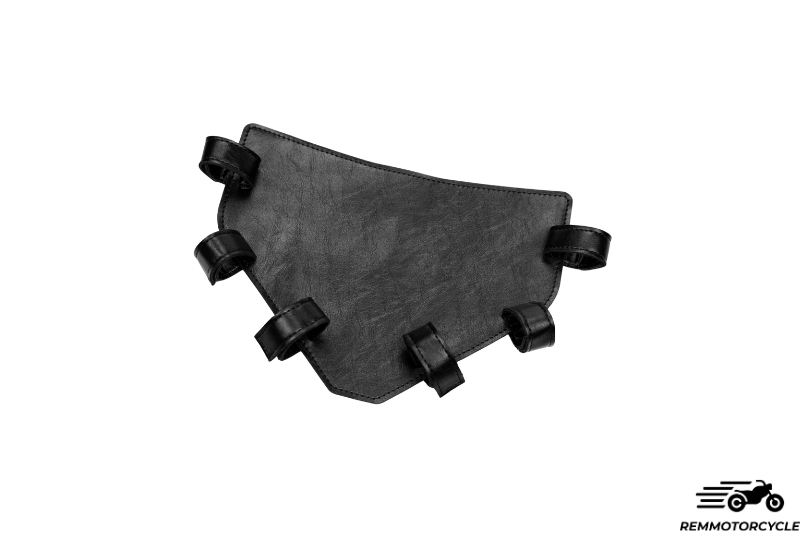

• Black leatherette side panel (fills the under-seat gap)
• Bracket & spacers for true “no-cut” installation

Benefits

• Optimized airflow: smoother curve, crisper mid-range response.
• Weight saving: lightweight titanium, ≈ 800 g lighter than the OEM air box.
• Custom aesthetics: rainbow welds add café-racer/bobber flair.
• Reversible fit: no cutting, can be returned to stock at any time.

Technical data

• Elbow material: Gr 1 titanium, 1 mm wall • TIG-welded
• Filtration: washable triple-density foam
• Hardware: stainless M6 bolts, anodized brackets
• Compatibility: Triumph Bobber / Bobber Black / Bobber Chrome (1200 cc)

Installation (≈ 60 min)

1. Remove the seat, stock air box and battery cover.
2. Fit the supplied leatherette side panel and tighten the straps.
3. Slide the titanium elbows onto the throttle bodies, facing rearwards.
4. Secure the CNC clamps, then tighten the conical filters.
5. Check that no hose is pinched; start the engine and check for air leaks.

Installation Example

View this post on Instagram

A post shared by remmotorcycle (@remmotorcycle)

Note

An ECU remap or adjustable fuel module is recommended to extract full performance. Not road-legal in some regions – intended for track or show use.

Availability

available in 7–12 days.
