Front floating brake Disc for Harley-Davidson (before 1999)

Greatly Improve the Braking of Your Harley

Designed with top-quality materials, this disc ensures exceptional reliability and smooth performance.

A premium braking solution, ideal for riders seeking optimal quality.

WHY CHOOSE A FLOATING DISC?

Floating discs allow for more effective heat dissipation, reduce unsprung weight, minimize vibrations, and increase durability. They are commonly used in high-performance vehicles to offer optimal braking capabilities.

QUALITY MATERIALS

• S42020 Stainless Steel: This is the type of steel used by the top braking brands.
• 6061 Aluminum: 6061 aluminum is a very commonly used aluminum alloy in many applications due to its excellent mechanical properties and corrosion resistance. This material is used for the hub and for the six bushings.
• Manufacturing: CNC laser cutting and dual precision grinding to the tightest tolerances to eliminate any vibration.

DESIGN

The Harley floating brake disc makes a striking difference to your vehicle with its unique and timeless design. A combination of quality and elegance, this brake disc is the perfect complement for all Harley motorcycles.

6 SPOKES

Motorcycle handling is optimized thanks to narrower tracks than a standard disc and the reduction of bushings from 12 to 6, reducing gyroscopic inertia.

FEATURES

• Assembly side: front and rear
• Diameter: 11.5" (292MM) and 12.6" (320MM)
• Brake disc type: floating
• Brake disc thickness: 0.2" (5MM)
• Number of holes: 5
• Inner diameter: 2" (50.5MM)
• Fixing points diameter: 3.25" (82.5MM)
• Weight: 1255g

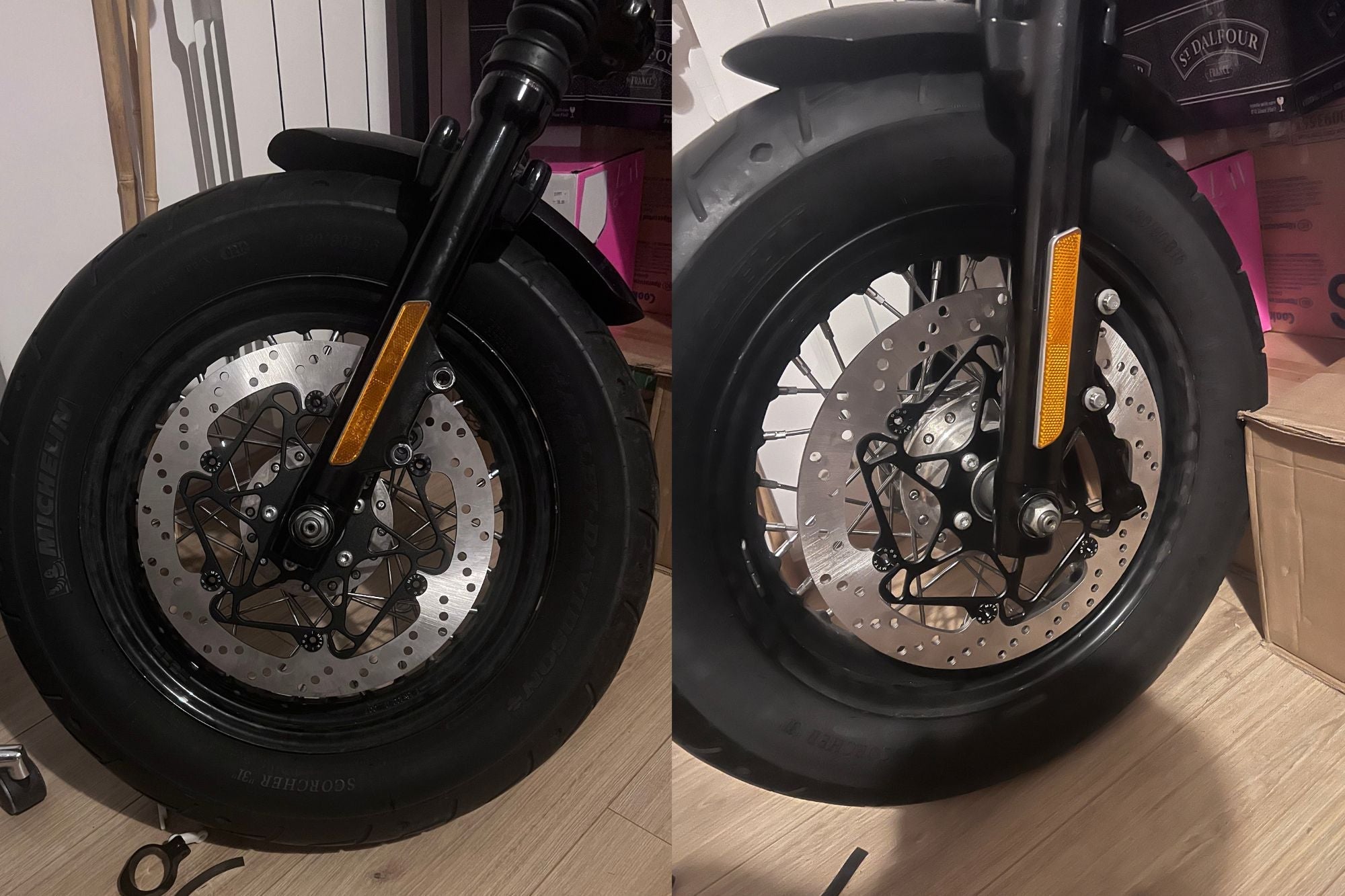

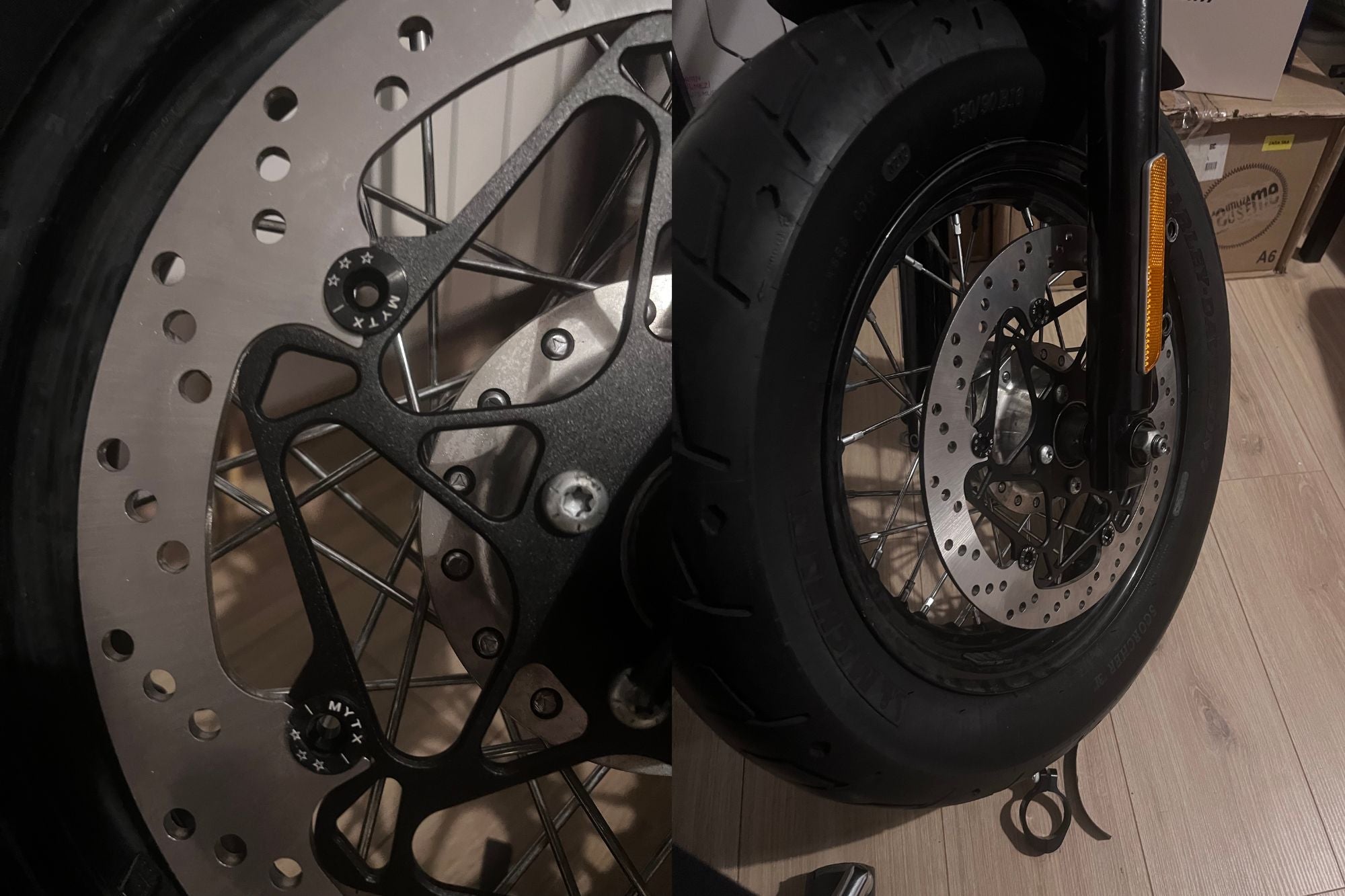

Example installation on a Sportster Forty-Eight in the photo gallery.

FOR WHICH MODEL?

292MM Model (11.5"):

Sportster

• 883 XLH (1985–1999)
• 1000 XLH (1979–1985)
• 1000 XLS Roadster (1982–1985)
• 1000 XLSA Roadster Anniversary (1982)
• 1000 XLX (1983–1985)
• 1000 XR (1983–1985)
• XL 1000 (1978)
• 1100 XLH (1985–1988)
• 1200 XLH (1987–1999)

Dyna

• 1340 FXD Super Glide (1995–1998)
• 1340 FXDB Glide Daytona (1991–1999)
• 1340 FXDB Glide Sturgis (1991–1999)
• 1340 FXDL Low Rider (1993–1999)
• 1340 FXDS Convertible (1994–1998)
• 1340 FXDWG Wide Rider (1993–1998)
• 1340 FXLR Low Rider Custom (1987–1999)

FXR / FXRD / FXRS / FXST / FLST / Touring

Compatible with various 1340 models produced between 1982 and 1999 — see detailed compatibility list on the product page.

320MM Model (12.6"):

For models equipped with an offset bracket and an upgraded caliper like the Freespirit or Remmotorcycle kit.

> Installation Guide <

Note: The product is made to order.
