Relocation Bracket for Triumph Modern Classics

• key relocation bracket – Triumph Modern Classics range
• Compatibility: T120, T100, Street Twin / Cup, Street Scrambler
• CNC-machined 6061 aluminum, bead-blasted black finish + stainless hardware

Lower the ignition switch and clean up your cockpit

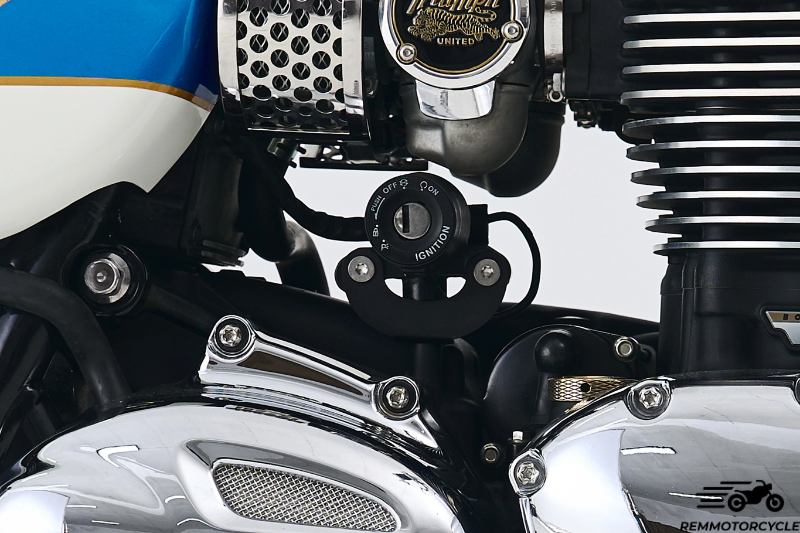

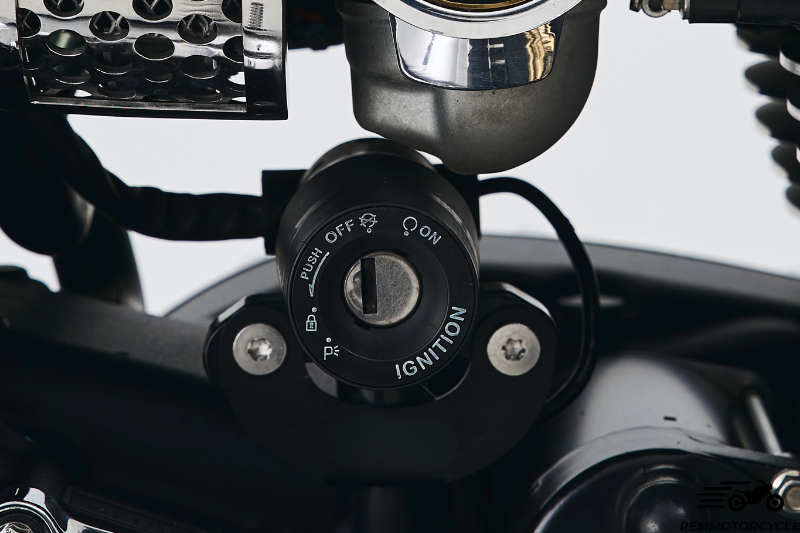

The “key relocate” bracket moves the ignition switch beneath the lower frame tube on your Triumph, freeing the space between the fork legs for a cleaner vintage look.

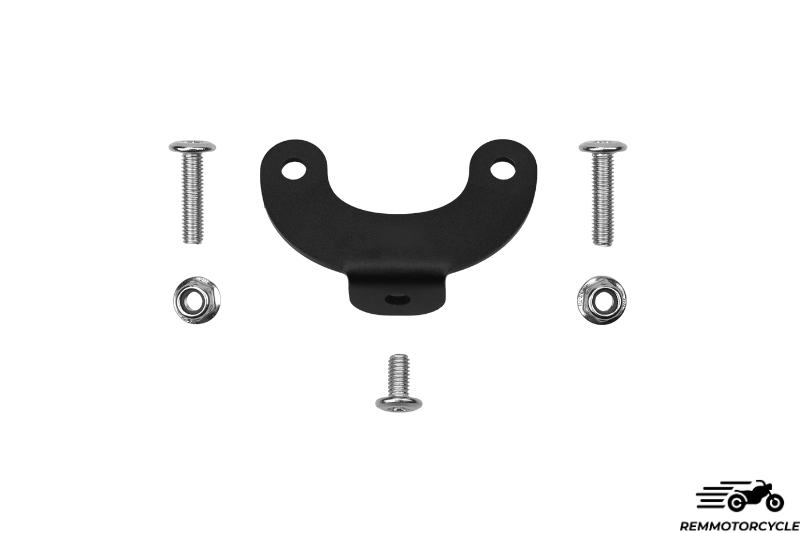

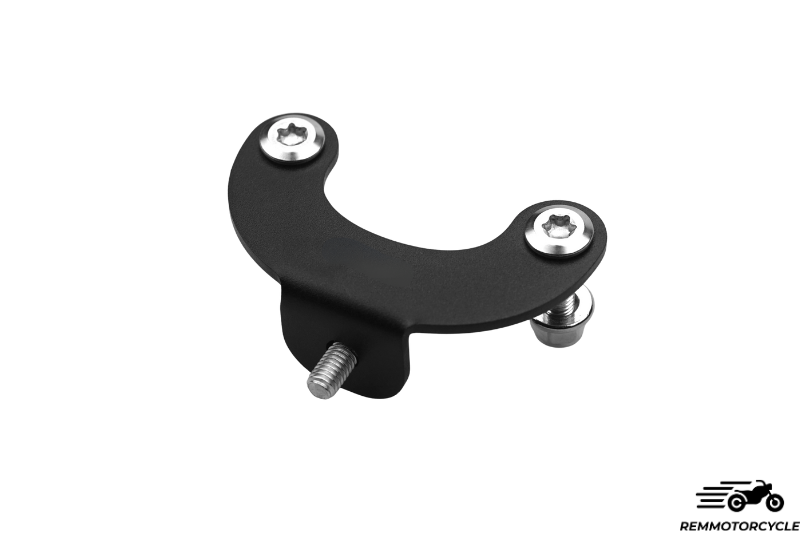

 Machined from 6061-T6 aluminum and anodized matte black, it comes with all stainless bolts and nyloc nuts required.

Key features

• 6 mm thick – rock-solid, no play once mounted
• Retains the OEM steering-lock pin; no cutting or drilling

• True plug-and-play: reuses existing M6 frame threads

Installation (≈ 15 min)

1. Disconnect the battery, remove the stock ignition plate (5 mm Allen key).
2. Position the bracket under the lower frame tube.
3. Fasten with the supplied M6 × 25 bolts, washers and nyloc nuts.
4. Reinstall the ignition switch, torque to 8 N·m and reconnect the battery.

Detailed compatibility

• Bonneville T120 (2016 →)
• Bonneville T100 (2017 →)
• Street Twin / Street Cup / Street Scrambler (2016 →)
• Thruxton 900 / 1200: not compatible (different frame mount)

Availability

Available within 7-12 days.
