Back loop led cut out 3 parts

23475



  • Handcrafted
  • Made of steel
  • 3-point cutout
  • Physically separated turn signals
  • 3 part STOP lights
Type
wide
Diameter

PAYMENT IN 4 TIMES

TESTE ET APPROUVÉ

TESTED AND APPROVED

SATISFACTION 100%

SATISFACTION GUARANTEED


DESCRIPTION:



The cut out led rear buckle is a unique product made for your cafe racer.


If you want to install a flat seat or modify the shape of your bike, the led rear loop is ideal to close the frame of your bike.

This integration allows you to create a minimalist style by removing all unsightly elements.

The LED strip includes turn signals, tail light and stop light.

The rear buckle is a part to be fixed to the rear of the motorcycle to close the frame and make the rear part of the motorcycle more aesthetic.

Several sizes available.



This version has 3 cuts in the loop to let appear in 3 parts distinguish the left blinker, the right blinker and the rear light. The stop light illuminates all 3 parts at the same time.



This rear loop led is appreciated by professional preparers in the realization of cafe racer.

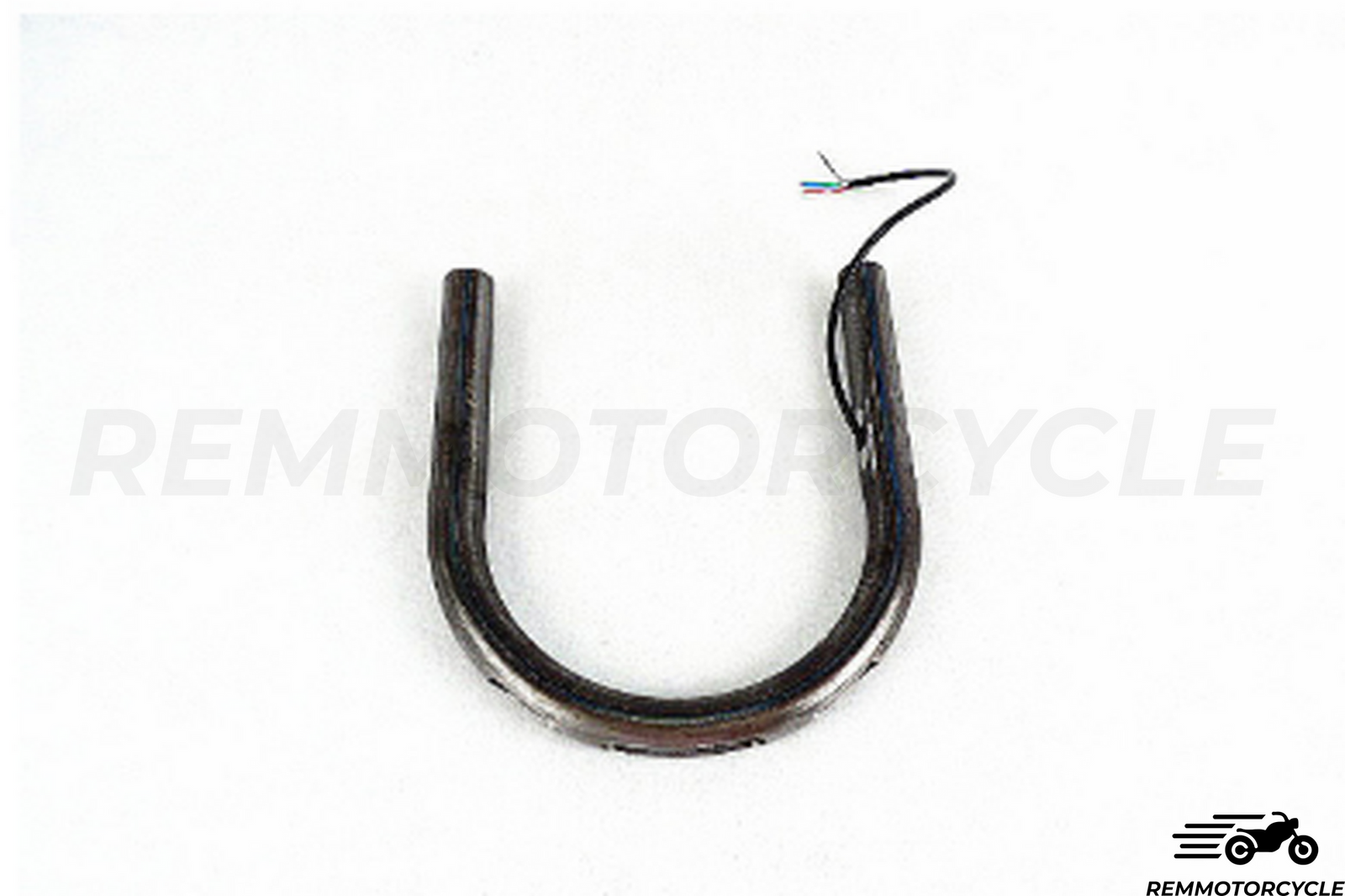

In picture, a short loop :


The dimensions expressed correspond to the following dimensions :

Caution : The width expressed is the external width, distance between the ends of each side.



Features :

  • LED strip light with turn signal, low beam and STOP light
  • Several sizes available
  • Two types of loop: flat or raised
  • Perfect integration
  • Diameter: 7/8" (22 mm)
  • The LED strip is already fixed (not final)




The correspondence of the wires is as follows :

  • Red: brake lights
  • White: position lights
  • Yellow: left turn signal
  • Green: right turn signal
  • Black: negative

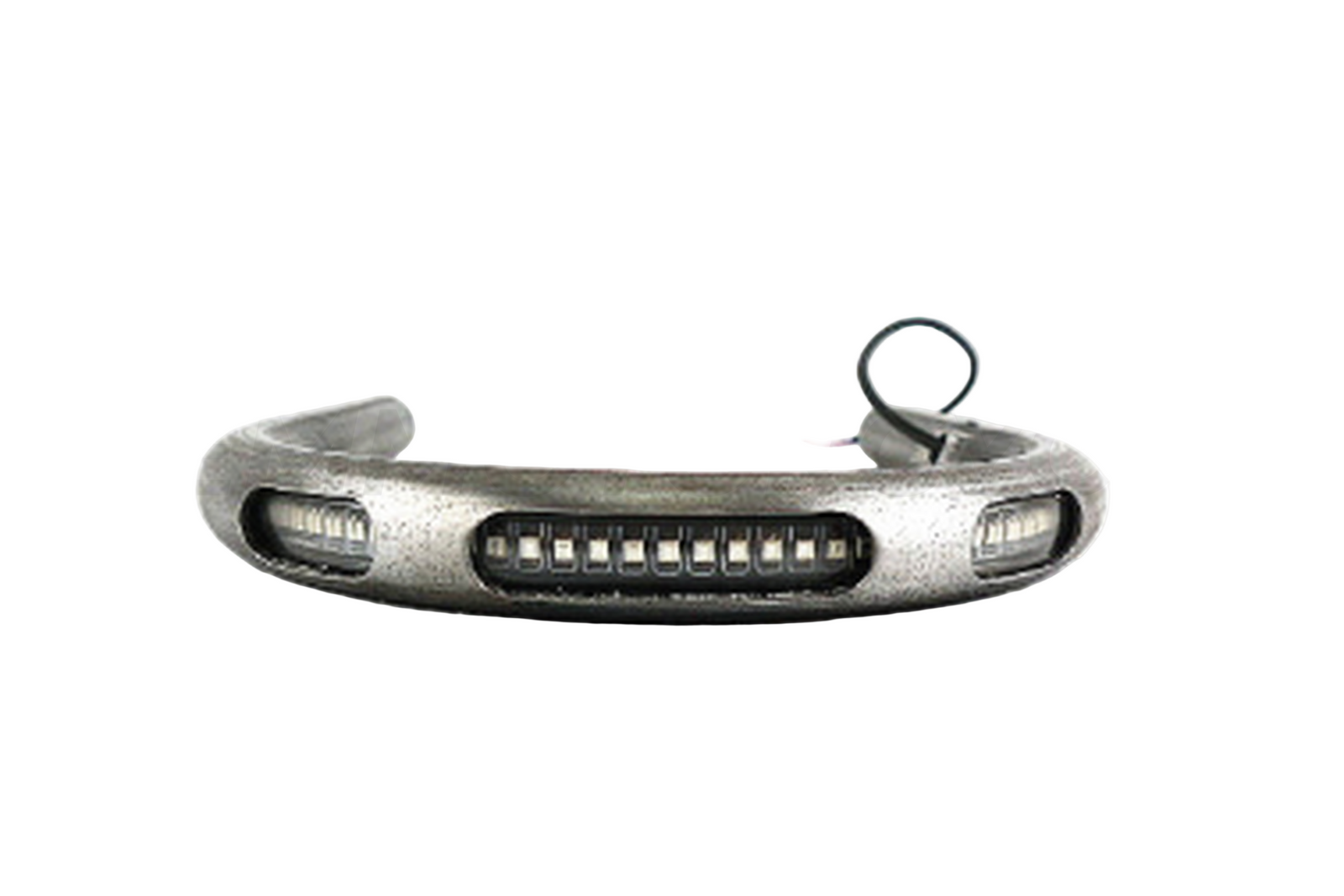

Photos with LEDs on :





Note : It may be advisable to install resistors if your rear lights are bulbs.

Similarly for the turn signals, if the 4 turn signals are LED, we advise to install a central LED turn signal or resistors if the front turn signals are bulbs.

The loop is made to order.

Available within 10-15 days.
